Some people seemed interested in a breakdown of this little system, so here’s a thread on how it works. 🧵

#GodotEngine #gamedev #indiedev

There is some preparation needed on the hair mesh for the in-engine hair shader, so, first I vertex painted the tips of the strands that come out of the solid base in white, while leaving the rest black.

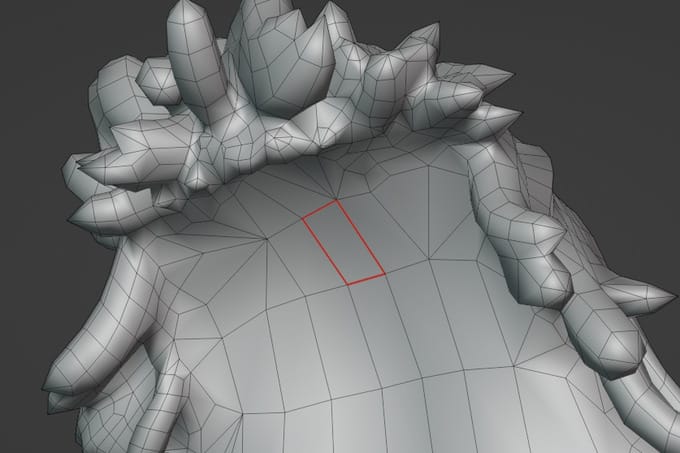

Then I unwrapped a second set of UVs, with a small cut on a part of the surface that is usually hidden. It looks really messy and distorted, but it’s fine for this purpose.

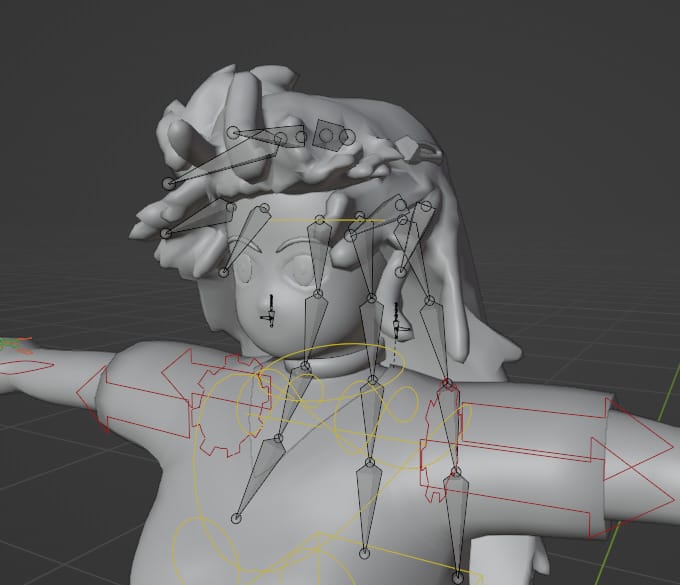

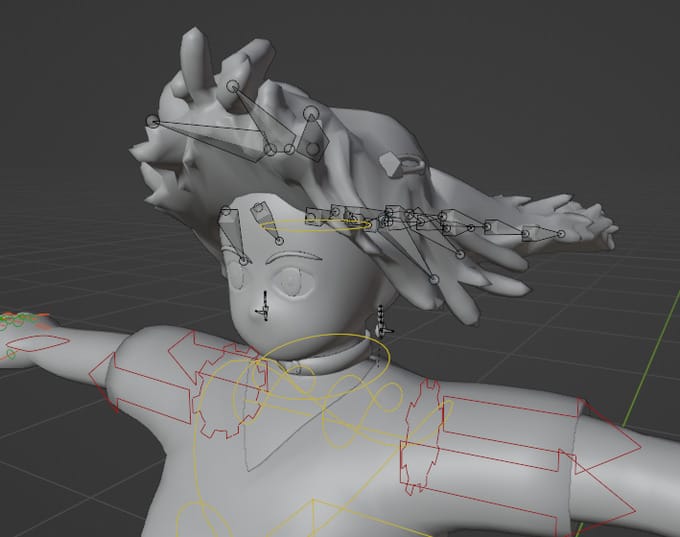

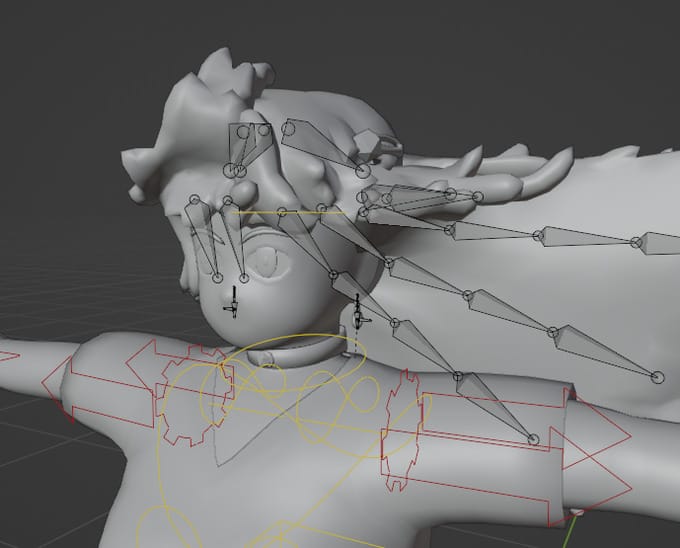

I also have a rig for the hair, along with the character rig, so I posed the extremes of each wind direction in one frame and made them into separate animations.

After this, I animated a bit of wind intensity by hand in blender. This will later be blended with a more randomized vertex shader animation.

In Godot, I created a vertex shader that runs a noise texture through the UV2 and multiplies its influence by the vertex colors, so it only offsets the tip vertices.

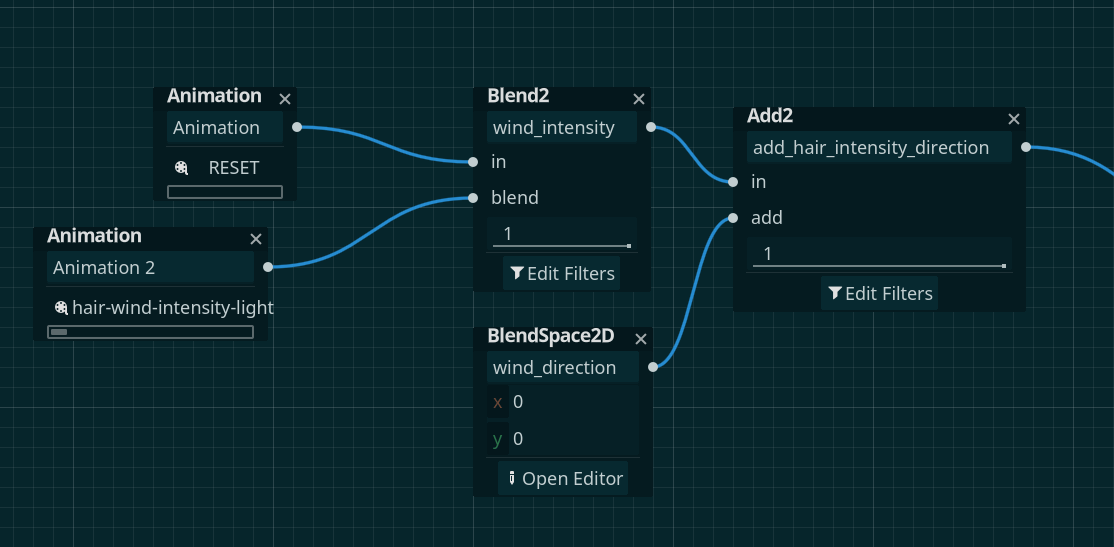

Then it was just a matter of creating an AnimationTree and blend a BlendSpace2D containing the direction animations with the intensity animation and adjust the shader material values.

Note: remember to filter the animation blending to the hair bones only!

And there you have it! An interestingly functional solid hair mesh.

For those who are curious, this is Claire, a character from an original game I am creating. Her design is not final right now, but if you are interested in seeing more, please leave a follow!

Originally tweeted by antourenein 🍇 (@antourenein) on September 1, 2022.
